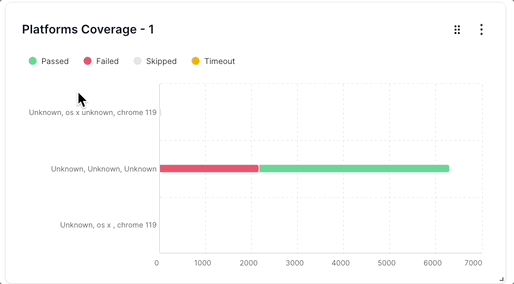

Platforms Coverage

This widget helps you understand the coverage of your automation tests across various device-os-browser combinations. A high number of combinations and a well-distributed percentage of tests in multiple combinations indicate a more rigorous testing activity across multiple device-os-browser combinations.

Drill down for more information

Test Observability enables you to investigate more contextual information on all dashboard widgets using the drill-down feature.

You can use the drill-down feature in the Platforms Coverage widget to analyze more details on the tests that run on various devices, browsers, or OS. For example, if you see a disproportionate number of test failures on one platform, you can investigate the tests run on that platform.

Follow these steps to use the drill-down feature:

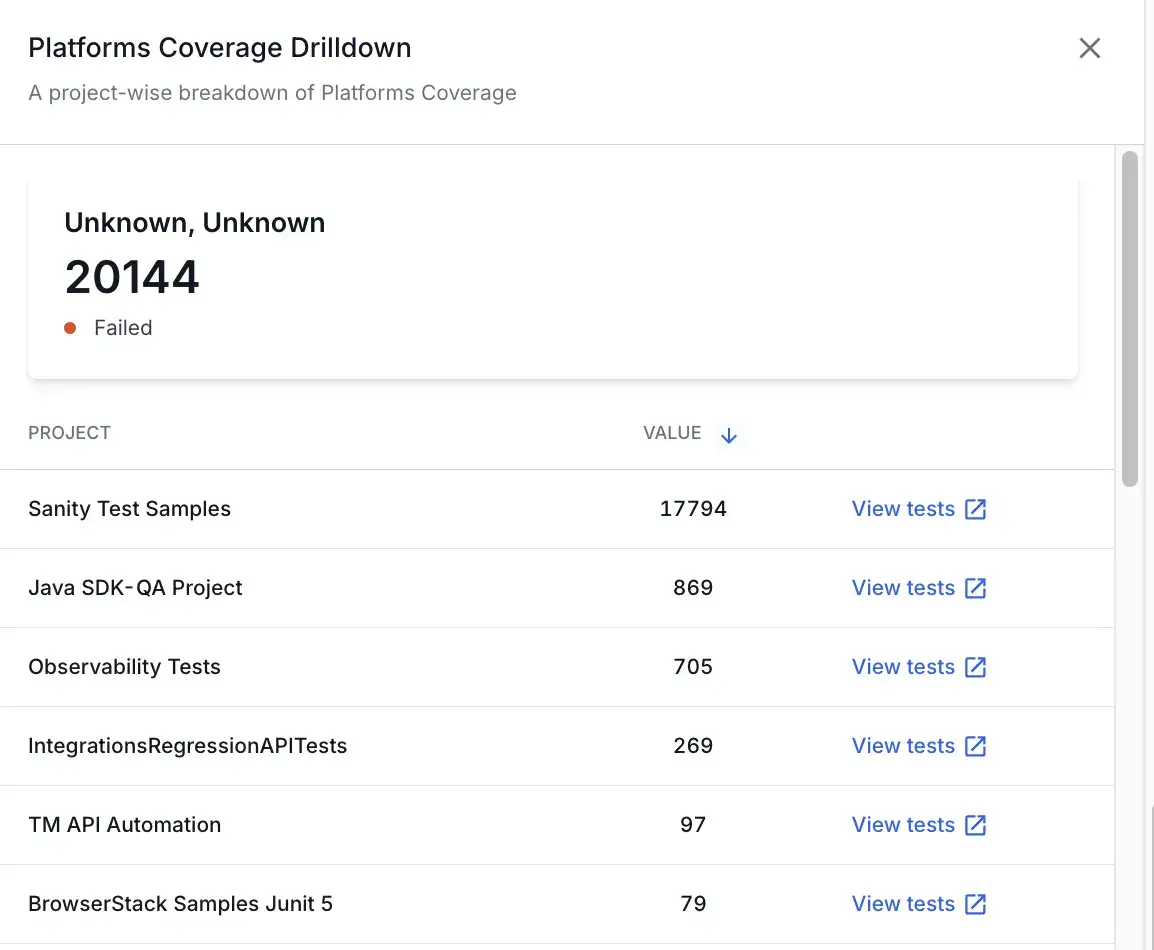

1. Hover on any point in the Platforms Coverage widget and click View breakdown. A project-wise breakdown of the metrics for the selected date range opens up in a side pane.
2. Click View tests to get to the tests that run on various device-os-browser combinations.

This opens Tests Health in a new tab with the applicable filters. On Tests Health, you can view the individual tests that that run on various device-os-browser combinations for further investigation.

Widget configuration - Platforms Coverage

You can configure the following options in the Platforms Coverage widget:

• Choose to group the chart by Device, OS, Browser, or a combination. You can further enrich the dashboard by grouping information based on Browser Version and OS Version.
• Filter data by several parameters like projects, unique build names, users, tags, etc.
